Serge

First pictures

(klick pictures for larger images)

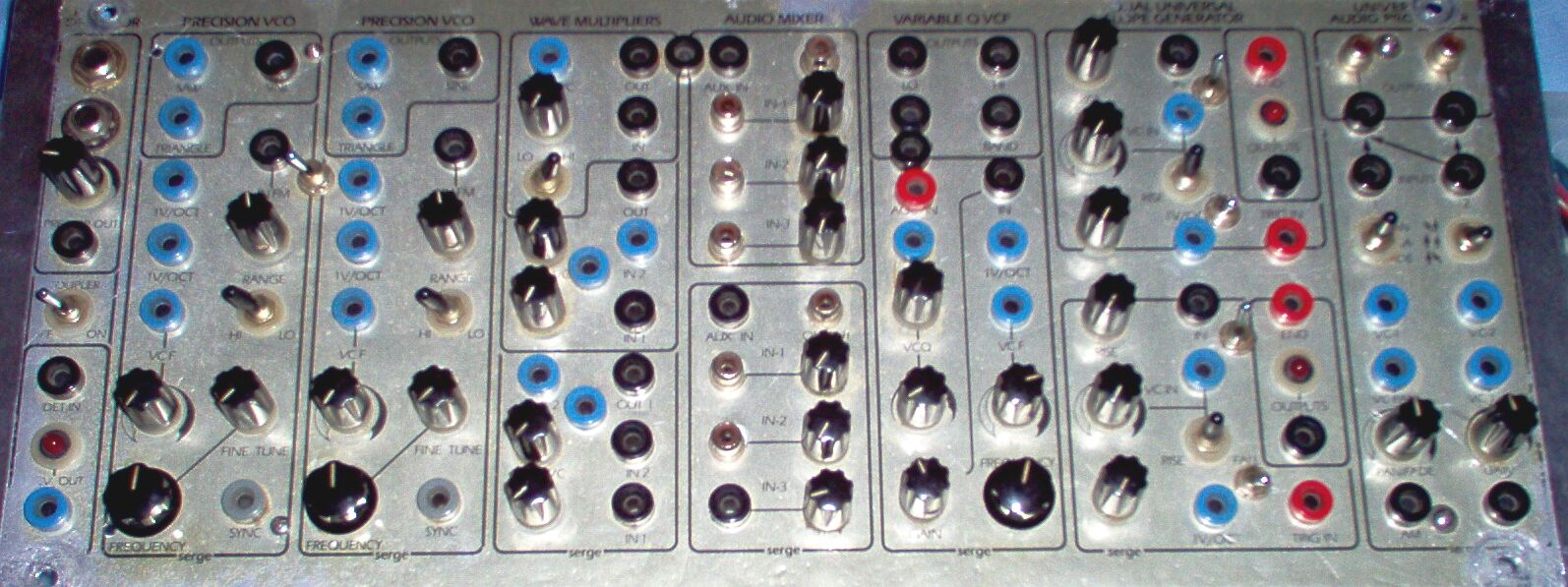

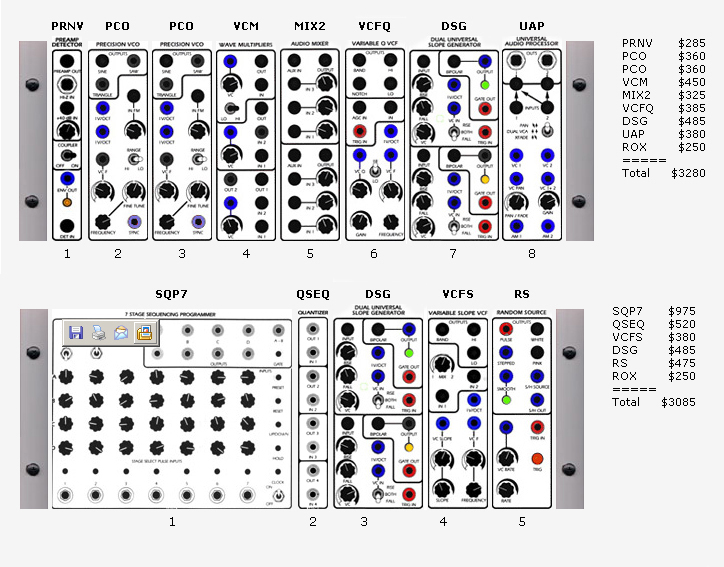

A layout made with "the Serge Modular Configurator" at http://www.ticalun.net/sergePlanner/

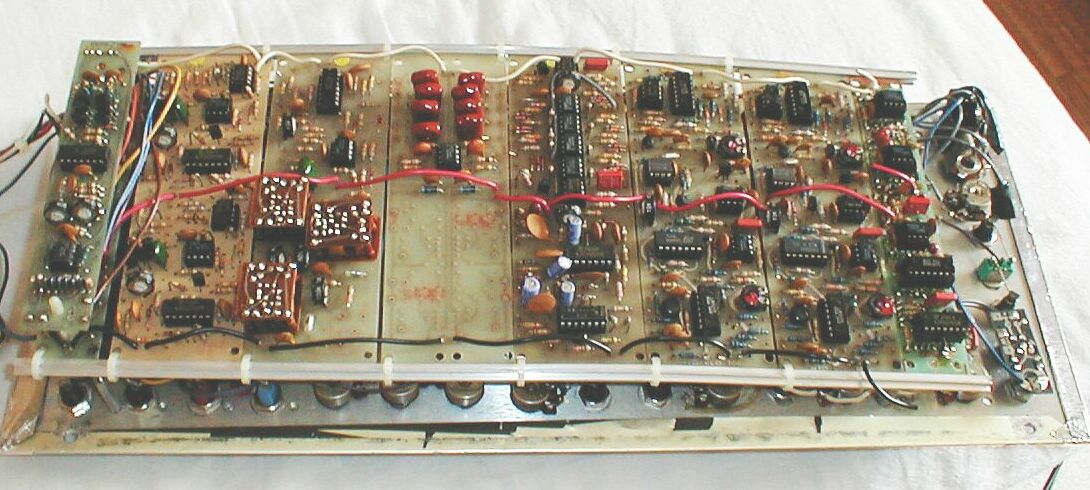

Before

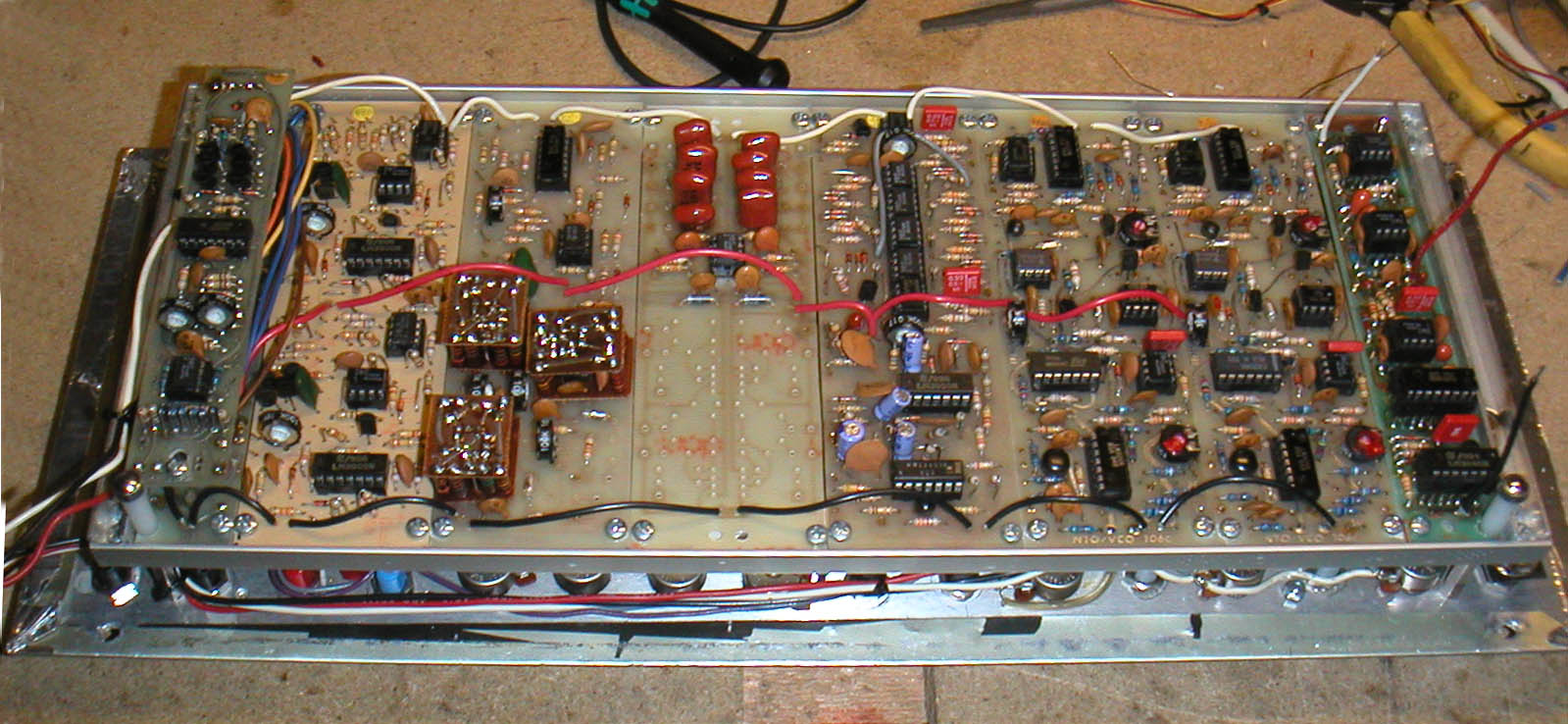

After

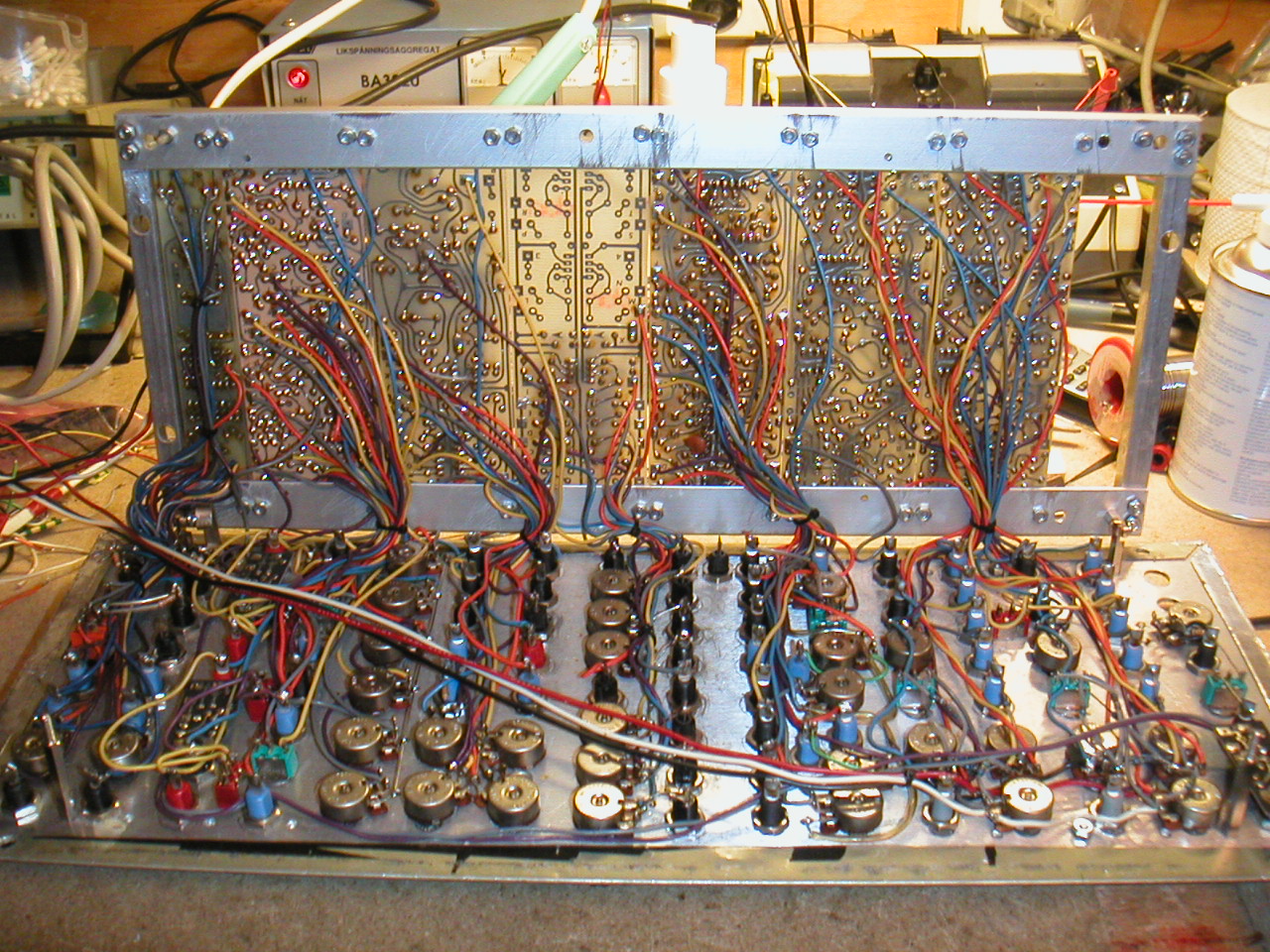

First panel with PCB-frame open. (without Preamp Detector)

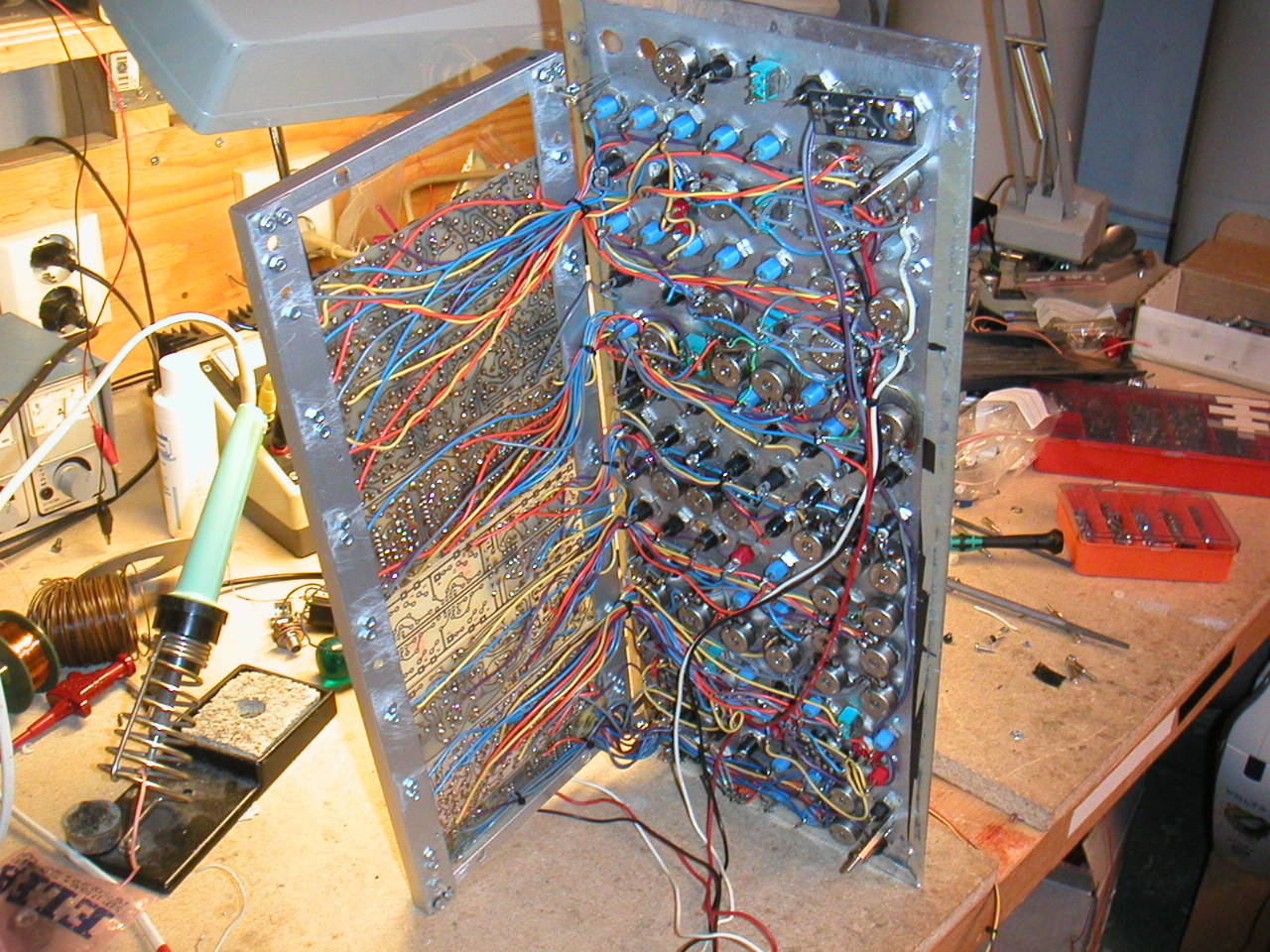

First panel standing on side. (without Preamp Detector)

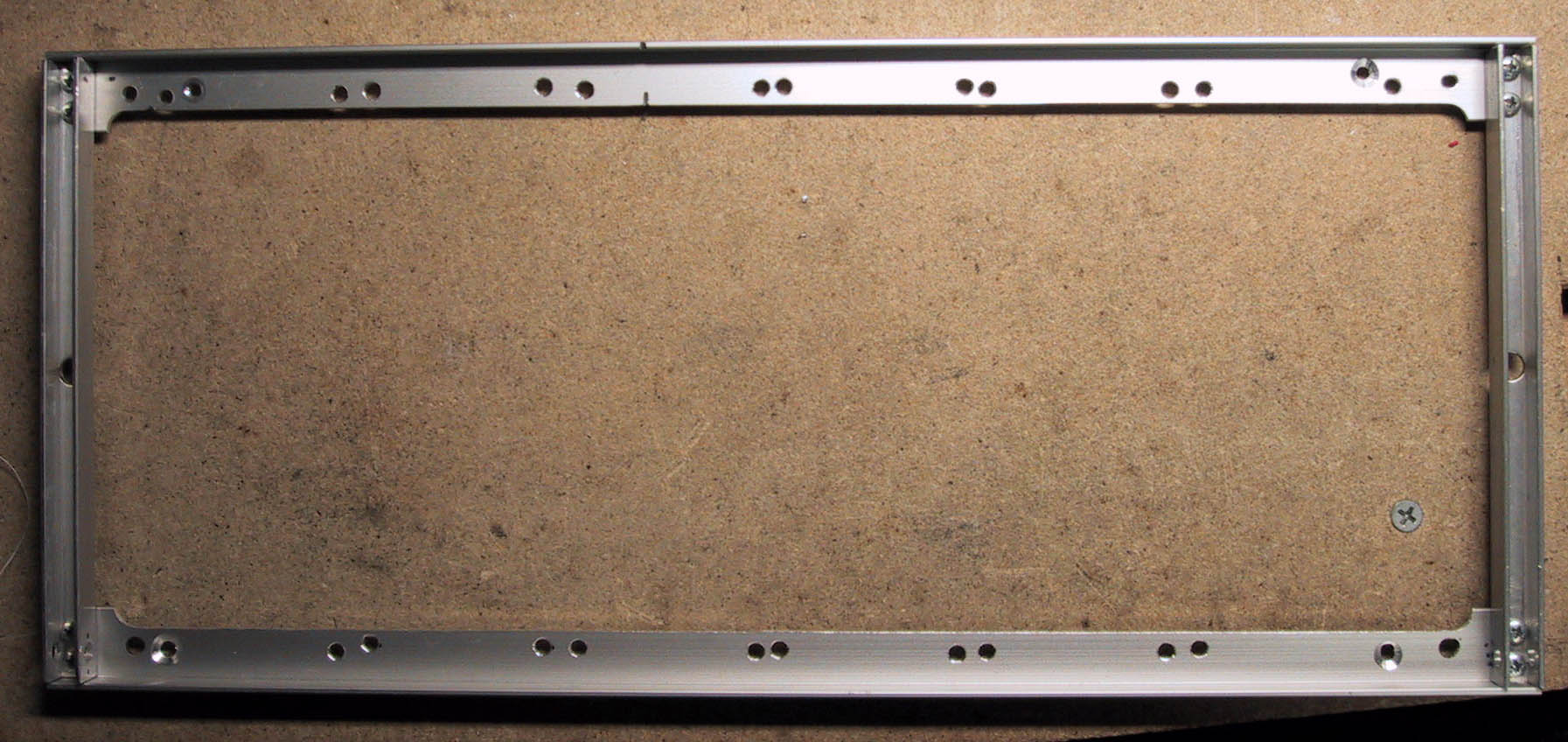

One of the PCB-frames

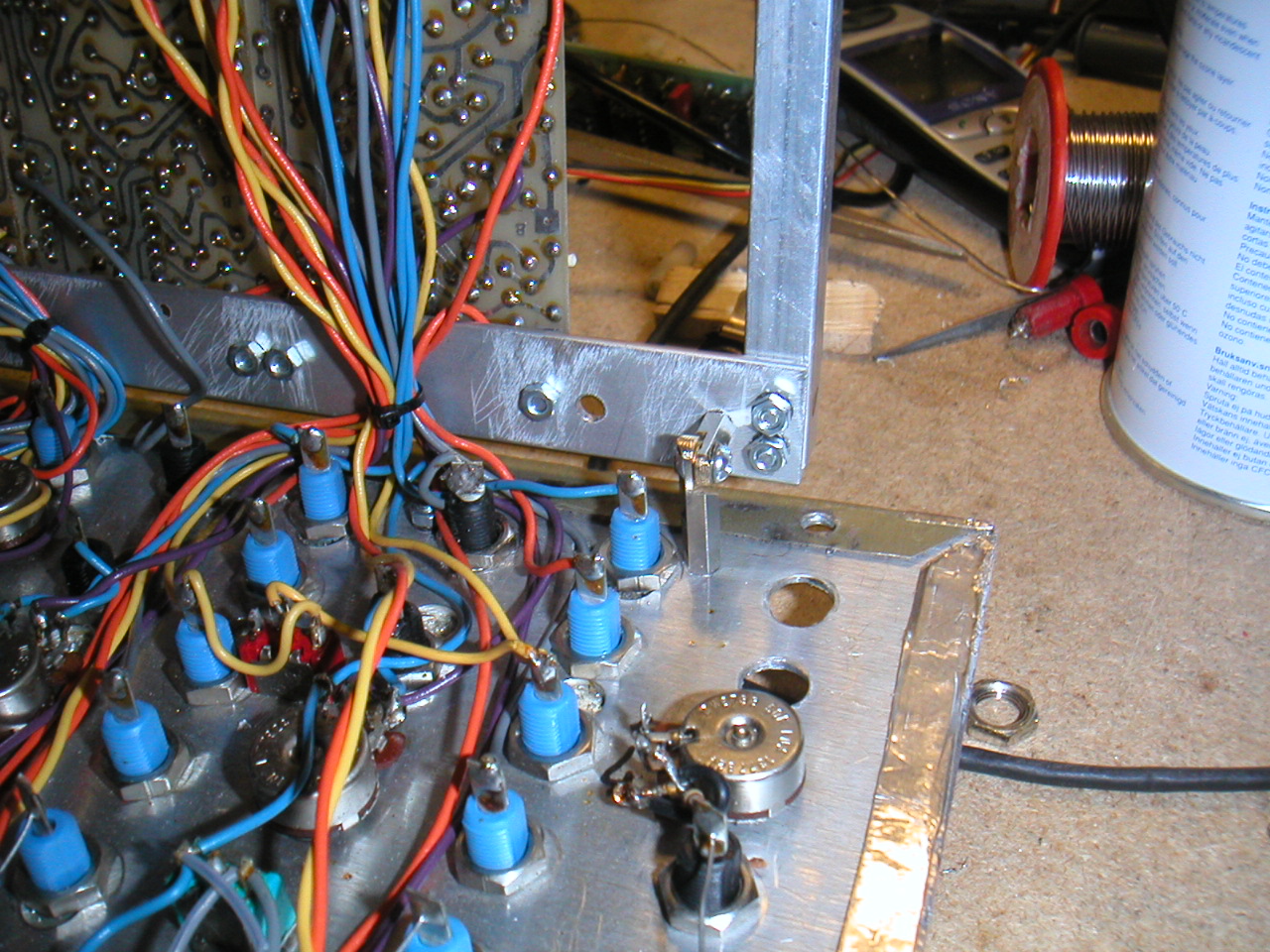

Home made hinges for the frame.

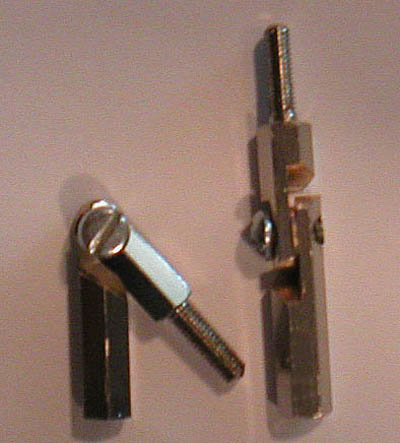

Closeup on one of the hinges of PCB-frame.

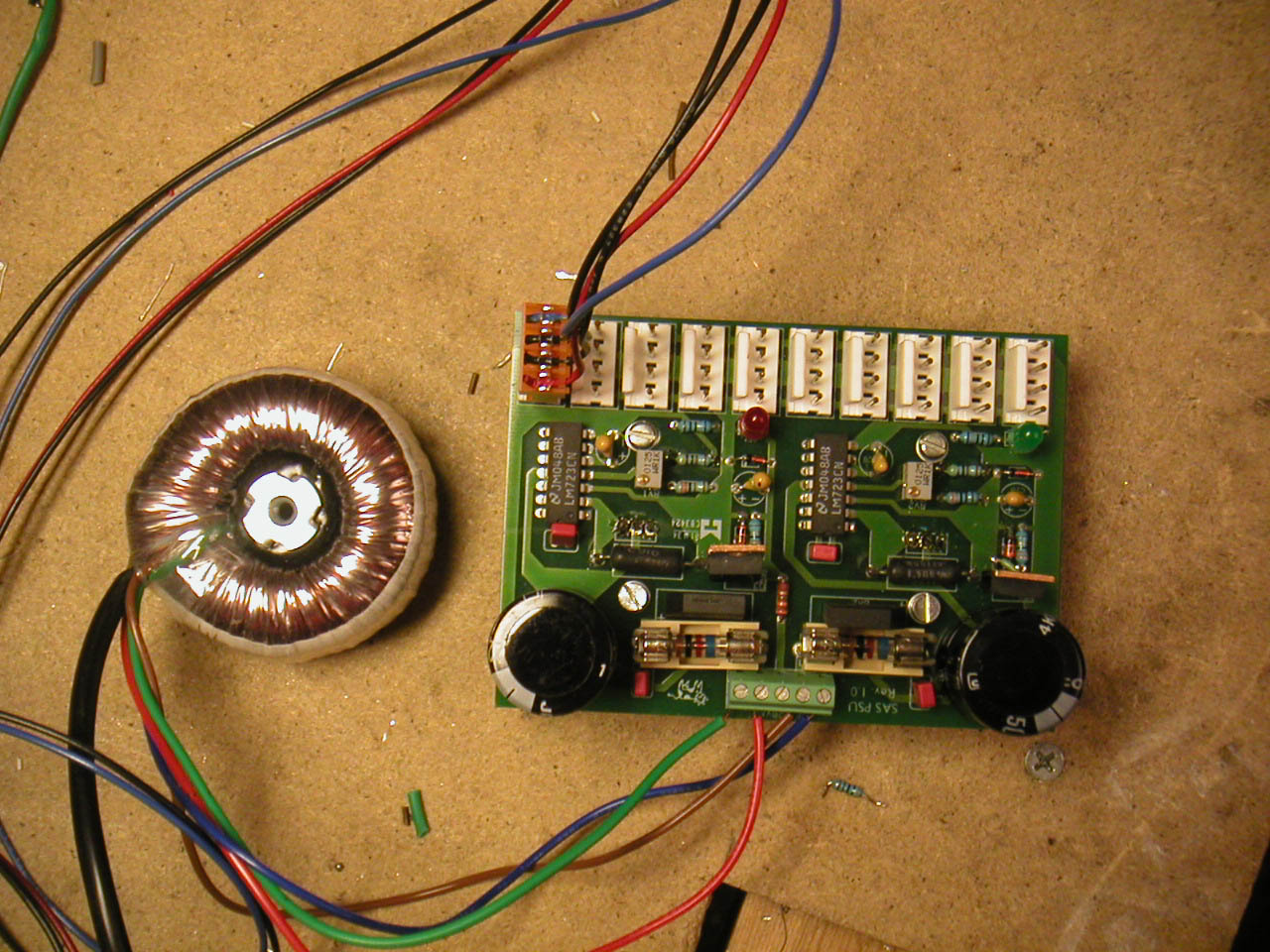

New PSU. Slightly modified SAS-PSU (Bigger transistors and changed output to +/-12V) http://www.jacek.nu/sas/psu.html
